Manual Vegetable Chopper Cutting Mechanism: How It Works

Manual vegetable choppers look simple, but their cutting systems involve several clever mechanical principles. Understanding those parts makes it easier to choose, operate, and maintain one.

In this guide, I’ll explain how each mechanism works. I’ll also cover blade geometry, cutting performance, common problems, and practical maintenance tips.

What Is a Manual Vegetable Chopper Cutting Mechanism?

A manual vegetable chopper cutting mechanism is the collection of components that transfer human force to cutting blades. Its purpose is to reduce vegetables into smaller pieces through controlled mechanical movement.

Unlike an electric food processor, a manual chopper has no powered motor. Instead, it relies on your hand to operate the blades.

Main Components of a Manual Chopper

• Cutting blades: Sharp metal edges that slice or chop ingredients.
• Drive mechanism: A cord, lever, shaft, or plunger that transfers force.
• Blade holder: Keeps the cutting edges correctly positioned.
• Container: Holds vegetables during cutting and collects chopped pieces.
• Lid or housing: Supports moving parts and reduces access to the cutting area.
• Return system: A spring or similar component resets certain mechanisms.

These components work together, but their arrangements vary considerably. A pull-cord model operates differently from a grid-style vegetable dicer.

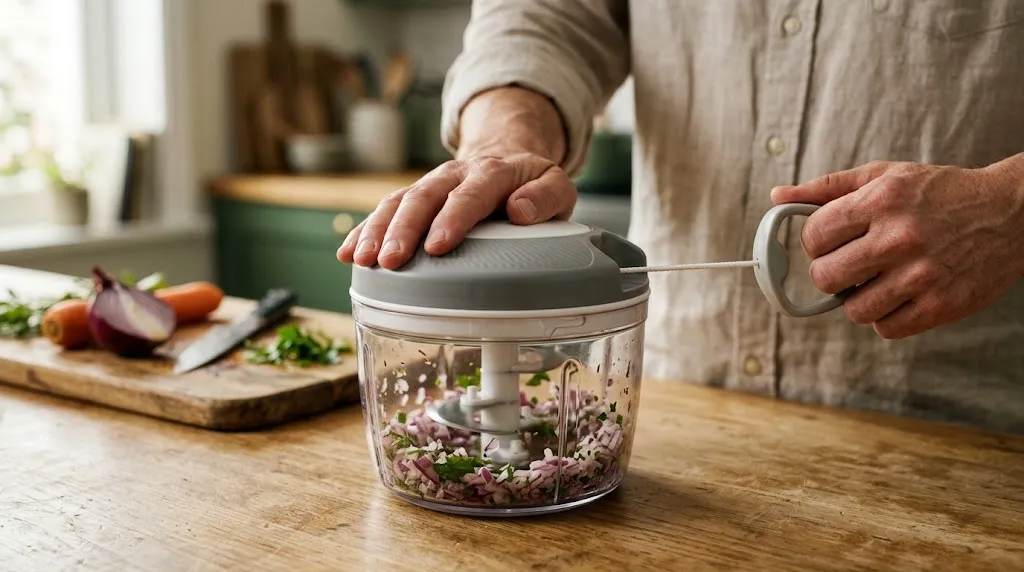

How Does a Pull-Cord Vegetable Chopper Mechanism Work?

A pull-cord vegetable chopper converts a straight pulling motion into rotational blade movement. It typically uses a cord reel, internal coupling, return spring, and central blade shaft.

When you pull the handle, the cord unwinds and turns the drive assembly. This causes the connected blades to rotate inside the container.

The Five Stages of the Pull-Cord Mechanism

1. Pulling: The user pulls the external handle, extending the cord.
2. Rotation: The cord unwinds from a reel and turns the internal drive assembly.
3. Power transfer: A coupling transfers rotational motion to the blade shaft.
4. Cutting: Curved blades sweep through the vegetables, slicing ingredients in their path.
5. Reset: The return spring rewinds the cord for another pull.

Many pull-cord choppers include a one-way drive mechanism. This lets the cord retract without forcing the blade assembly backward.

A documented design uses a ratchet, pawls, cord reel, and torsion spring. You can examine these mechanical details in US Patent 12194649B2.

Why Do Pull-Cord Choppers Cut Faster With Repeated Pulls?

Each pull moves the blades through another cutting cycle. Ingredients already cut once may encounter the blades again, becoming progressively smaller.

This creates a useful form of texture control. Stop after a few pulls for larger pieces, or continue for a finer chop.

However, more pulls don’t guarantee perfect uniformity. Food moisture, blade sharpness, ingredient size, and bowl loading all influence the result.

How Does a Push-Down Vegetable Chopper Work?

A push-down chopper uses downward pressure to operate a blade assembly. Some models also turn the blades slightly during each pressing stroke.

The mechanism usually includes a plunger, return spring, cutting shaft, and blade housing. Pressing the top drives the cutting components toward the food.

What Happens During Each Press?

1. Vegetables sit beneath the blade assembly.
2. The user presses the plunger downward.
3. The connected mechanism moves the cutting blade through the ingredients.
4. Releasing pressure allows the return spring to reset the plunger.
5. Repeated presses continue chopping until the desired texture develops.

This design is useful when you prefer downward hand pressure over pulling a cord. It can also work well for preparing small portions of onions or herbs.

The blade path matters. A model with limited blade movement may leave larger pieces near the container edges.

How Does a Grid-Style Vegetable Chopper Cut Food?

A grid-style manual chopper forces vegetables through a stationary arrangement of intersecting blades. Instead of rotating, the blades remain fixed while pressure moves the food through them.

The result is generally more consistent diced pieces. Their approximate width comes from the spacing between the blades.

How the Grid Mechanism Works

• Food placement: Position a suitable vegetable piece over the cutting grid.
• Downward force: Close the hinged lever or press the cutting plate.
• Blade penetration: The grid edges slice through the vegetable.
• Piece formation: Cut sections pass through the openings.
• Collection: The container below catches the diced vegetables.

For example, a grid with openings approximately 6 mm wide produces narrower pieces than a 12 mm grid. Actual piece dimensions also depend on the vegetable’s original thickness.

Grid systems are especially useful for firm vegetables when consistent cuts matter. However, dense ingredients can require substantial pressing force.

Manual Vegetable Chopper Mechanisms Compared

Different cutting mechanisms prioritize speed, consistency, and hand movement. The best choice depends on the ingredients you prepare most often.

These are mechanical differences, not guaranteed performance rankings. Blade quality and individual product design can change the results significantly.

What Makes Vegetable Chopper Blades Cut Efficiently?

Blade sharpness, geometry, and movement influence cutting efficiency. A well-designed blade cuts ingredients while minimizing unnecessary crushing.

Blade Sharpness and Edge Angle

A sharp cutting edge concentrates force along a narrow contact area. This helps the blade penetrate vegetable surfaces with less resistance.

As blades become dull, they may crush or tear ingredients instead of slicing cleanly. Soft vegetables can become particularly messy.

Curved Versus Straight Blades

• Curved blades: Common in rotary choppers, where they sweep through ingredients during rotation.
• Straight blades: Often used in grid systems, making defined cuts as ingredients pass through.
• Staggered blades: Positioned at different heights to contact ingredients across more of the bowl.
• Interchangeable grids: Allow different piece sizes without changing the basic pressing mechanism.

Blade count alone doesn’t determine chopping quality. Geometry, rotation speed, ingredient movement, and blade exposure are equally important.

Why Stainless Steel Is Common

Stainless steel combines useful hardness with corrosion resistance. These properties make it suitable for blades exposed to moisture and acidic ingredients.

However, stainless steel is not automatically maintenance-free. Proper cleaning and drying still protect the cutting edges and blade assembly.

Why Does a Manual Vegetable Chopper Sometimes Cut Unevenly?

Uneven chopping usually occurs when ingredients don’t reach the blades consistently. Overfilling, irregular food sizes, dull blades, and inappropriate cutting mechanisms are common contributors.

Consider a bowl containing large onion wedges and tiny garlic pieces. The smaller ingredients may become finely minced before the larger sections finish chopping.

How to Improve Cutting Consistency

1. Prepare similar pieces: Cut large vegetables into manageable sections before loading.
2. Avoid overfilling: Leave enough space for ingredients to move through the cutting zone.
3. Use controlled movements: Pull or press smoothly instead of applying sudden excessive force.
4. Check texture frequently: Stop when the pieces meet your recipe’s needs.
5. Process separately: Chop very soft and firm ingredients in different batches when necessary.

For recipes requiring finely prepared garlic, a separate tool may be more appropriate. My comparison of garlic pressing and chopping explains how the methods differ.

How Many Pulls Does a Manual Vegetable Chopper Need?

There is no universal number because chopper mechanisms and ingredients vary. A useful approach is to start with a few pulls, inspect the pieces, and continue gradually.

The following example is a starting guide for a typical small pull-cord chopper, not a measured performance guarantee.

One important distinction: a pull-count guide is not a blade-speed specification. The number of revolutions per pull depends on the internal drive design.

Why Does a Manual Vegetable Chopper Get Stuck?

A jam usually indicates excessive cutting resistance or a problem with the drive assembly. Stop using the chopper rather than forcing its handle.

Common Problems and Solutions

• Overloaded container: Remove some ingredients and restart with a smaller batch.
• Oversized vegetables: Cut ingredients into smaller pieces before processing.
• Hard ingredients: Check whether the manufacturer permits chopping them.
• Incorrect assembly: Refit the central shaft and secure the lid as instructed.
• Food trapped near blades: Disassemble safely and remove the obstruction using a suitable tool.
• Damaged cord or gears: Stop operating the unit and seek approved replacement parts.

Never reach into a blade assembly while it remains connected to an active drive mechanism. Remove the lid and follow the manufacturer’s disassembly instructions first.

How Do You Clean and Maintain the Cutting Mechanism?

Proper cleaning removes food residue and helps preserve cutting performance. The safest method depends on which parts the manufacturer identifies as washable.

Cleaning Steps

1. Stop operating the chopper and set it on a stable surface.
2. Remove the lid following the manufacturer’s instructions.
3. Carefully lift out detachable blades using their designated holder.
4. Wash permitted food-contact parts with warm, soapy water.
5. Use a cleaning brush to remove particles near sharp edges.
6. Rinse and dry the washable components thoroughly.
7. Reassemble or store the parts only after they are dry.

Do not immerse a sealed pull-cord lid unless its instructions explicitly allow immersion. Water entering the drive housing can damage springs or other components.

The U.S. Food and Drug Administration provides food-handling guidance, including cleaning utensils and food-contact surfaces.

When Should You Replace the Blades?

Replace a blade assembly when it becomes chipped, bent, excessively dull, or otherwise damaged. Never attempt to straighten a cracked blade.

Check that replacement parts match your exact model. Using an incompatible shaft or blade assembly can prevent proper engagement.

Is a Manual Chopper Better Than Cutting Vegetables With a Knife?

A manual chopper can simplify repetitive small-batch preparation. However, a knife generally provides more control over exact shapes, cuts, and dimensions.

• Use a chopper: For chopped onions, herbs, quick salsa, and small vegetable mixtures.
• Use a knife: For slices, matchsticks, decorative cuts, and precise ingredient sizing.
• Use a grid dicer: For more regular dice when the ingredient suits the blade grid.

I recommend matching the mechanism to the finished dish instead of choosing solely by speed. Finely chopped vegetables work well in sauces, while some salads benefit from distinct, larger pieces.

For more ingredient preparation ideas, see these everyday cooking shortcuts.

Manual Vegetable Choppers Worth Considering

Understanding the cutting mechanism makes product selection easier. These three options illustrate different cutting designs for different kitchen tasks.

Product suitability scores below are editorial judgments, not customer-review averages or hands-on test ratings. Check the manufacturer’s latest specifications before purchasing.

Frequently Asked Questions

Does a manual vegetable chopper use gears?

Some manual vegetable choppers use gears or one-way ratchet mechanisms to transfer motion. Pull-cord designs may contain a cord reel, spring, and drive coupling. Grid-style choppers generally rely on direct pressure instead of a rotating gear system.

Why are manual chopper blades curved?

Curved blades are common in rotary choppers because their shape supports a sweeping cutting motion. Their effectiveness depends on blade angle, sharpness, rotational movement, and ingredient positioning. A curved blade is not automatically better than a straight cutting grid.

Can a manual vegetable chopper cut hard vegetables?

Some models can process firm vegetables such as carrots when cut into small pieces. However, suitability varies by manufacturer and blade design. Avoid frozen ingredients, bones, and other excessively hard materials unless the product instructions explicitly permit them.

Can you sharpen manual vegetable chopper blades?

Certain removable metal blades may be serviceable, but many manufacturers recommend replacing the complete blade assembly. Improper sharpening can change the cutting angle or damage the mechanism. Follow the manufacturer’s recommendations rather than modifying unfamiliar blades.

Why does my pull-cord vegetable chopper stop spinning?

Common causes include overloaded ingredients, an improperly fitted blade shaft, a jammed drive mechanism, or a damaged cord. Remove the ingredients and inspect accessible components safely. If the internal mechanism is damaged, use approved replacement parts or replace the unit.

Final Takeaway

The manual vegetable chopper cutting mechanism determines how your hand movement becomes cutting action. Pull-cord models rotate blades, push-down models rely on pressing strokes, and grid dicers force ingredients through fixed cutting edges.

For everyday kitchen preparation, choose the design that matches your preferred texture and working style. Keep blades clean, avoid overloading, and use the correct mechanism for each ingredient.

Start with the cutting method you need, then choose the chopper built to deliver it.
